UK manufactured · 30+ yearsEnergy efficiency excellence
Our range of energy control solutions includes PIR sensors, daylight harvesting, dimming systems, and programmable controllers. These products help maximise energy savings by ensuring lights are only on when and where they are needed.
Why specify us
MCD-PIR, MicroTect and MoviDim families dim lighting to ambient daylight and switch off when areas are unoccupied.
Controls layered on top of LED can deliver a further 30–70% energy reduction versus LED alone in suitable spaces.
Sensors and controllers integrate with both new luminaires and many existing installations — no full re-wire required.
MCD-PIR 2 Stage and MoviDim-RMS series deliver full output on motion, low-power dwell on unoccupancy — without on/off cycling.
Specified for this sector
A range of luminaires and controls engineered for the demands of this sector.

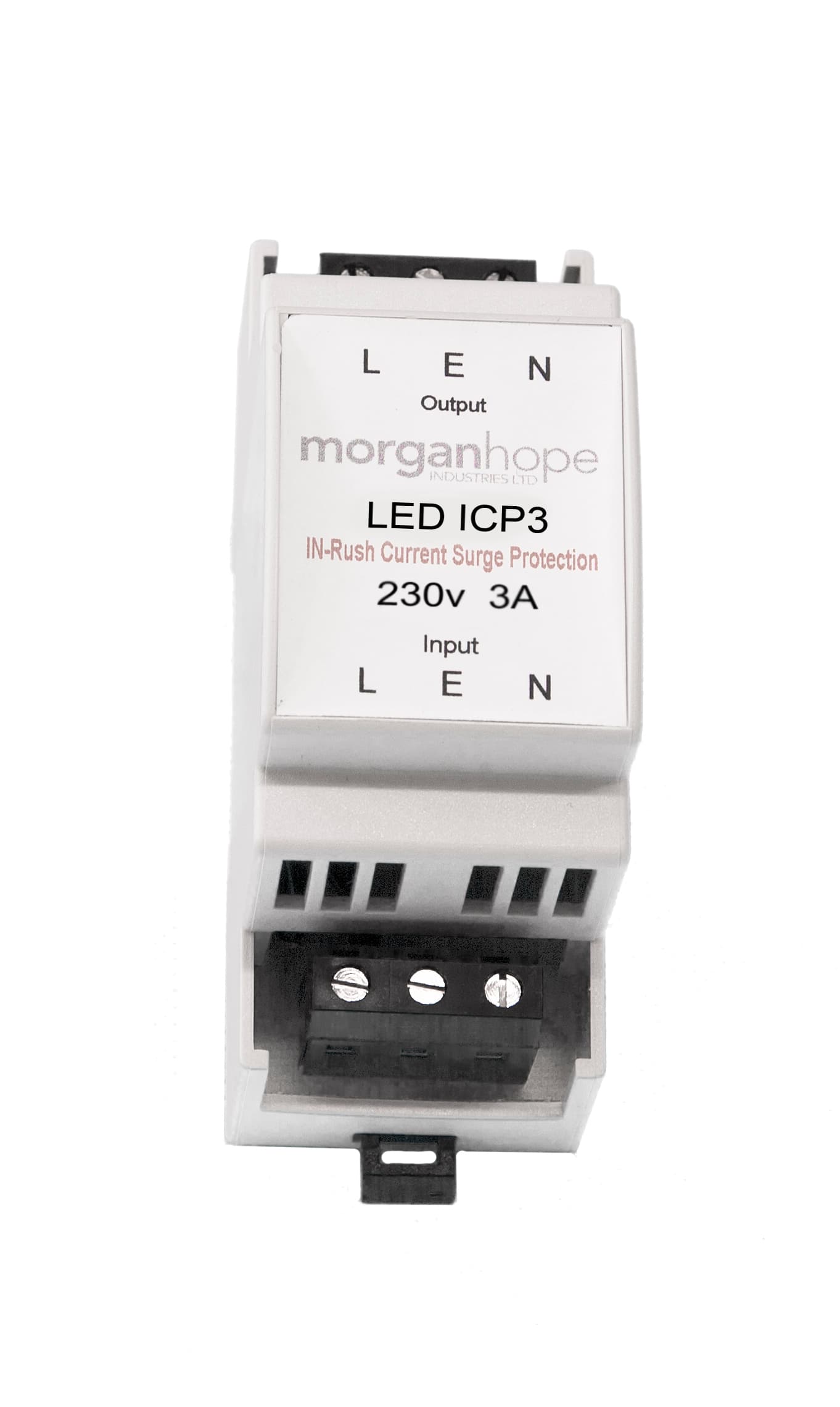

QUOTEThe operational characteristics of LED lighting and the related drivers can cause significant in-rush currents at start-up, resulting in nuisance tripping of the circuits during switching. Morgan Hope have designed the ICP-3 to interface with the distribution board lighting circuits, including but not limited to ranges of various types of Circuit Breakers or Fused Systems. The purpose of the ICP Range is to suppress the in-rush current from the LED circuits and drivers. In-rush current is a momentary surge of power which is rarely simultaneous when switching multiples of LedLite Luminaires, enabling a single ICP-3 unit to manage up to 20 fittings per circuit. The ICP protects against circuit tripping and damage to circuit breakers.
Request quote

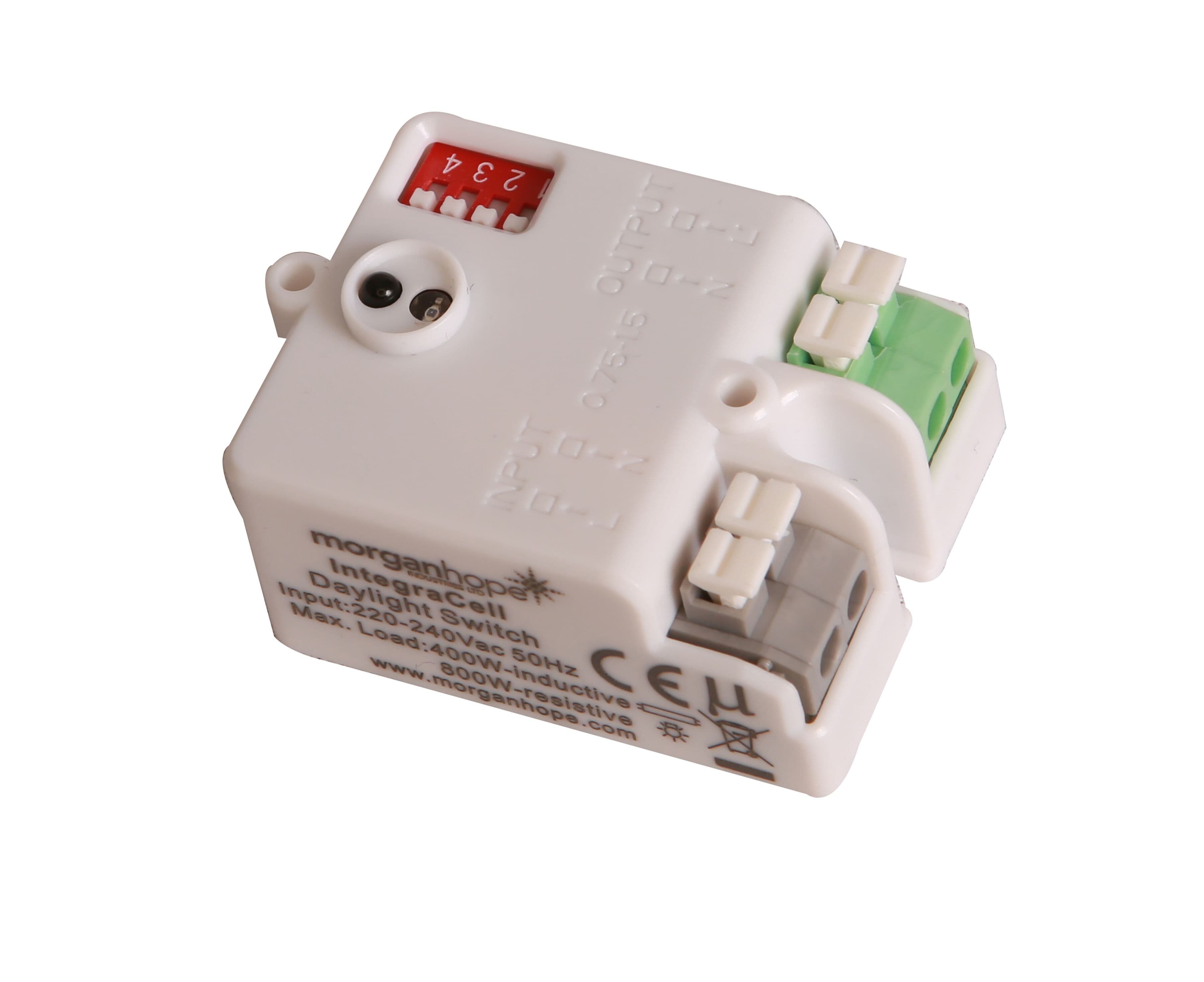

QUOTEIntegraCell is a patented daylight sensor developed to automatically switch lights on at dusk and off at dawn, providing continuous illumination through the night. Unlike standard photocells requiring the sensor head to be fitted into the body of the luminaire, the unique design of the IntegraCell, incorporating 2 photodiodes, is programmed to distinguish between daylight and LED light, enabling it to be concealed within the luminaire but still operating on daylight switching only.
Request quote

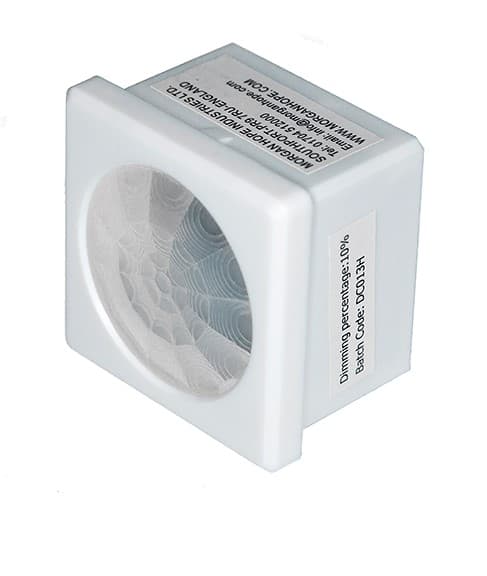

QUOTEThe MCD-PIR Movement Controlled Dimmable Lighting System is designed to operate LED or fluorescent analogue 1V to 10V dimming Ballasts or Drivers, maintaining full output during occupancy, then dimming in two stages with 50% output after 5 minutes of non-detection and an additional 40% after a further 2.5 minutes of non-detection, to remain at a constant 10% output. Any time during the time-out movement is detected, the luminaire will switch to 100% output. The MCD-PIR does not have daylight facility and whilst suitable for most areas requiring occupancy control it is especially useful in areas such as Data Centres, where moving equipment could cause nuisance switching with Microwave detection.
Request quote

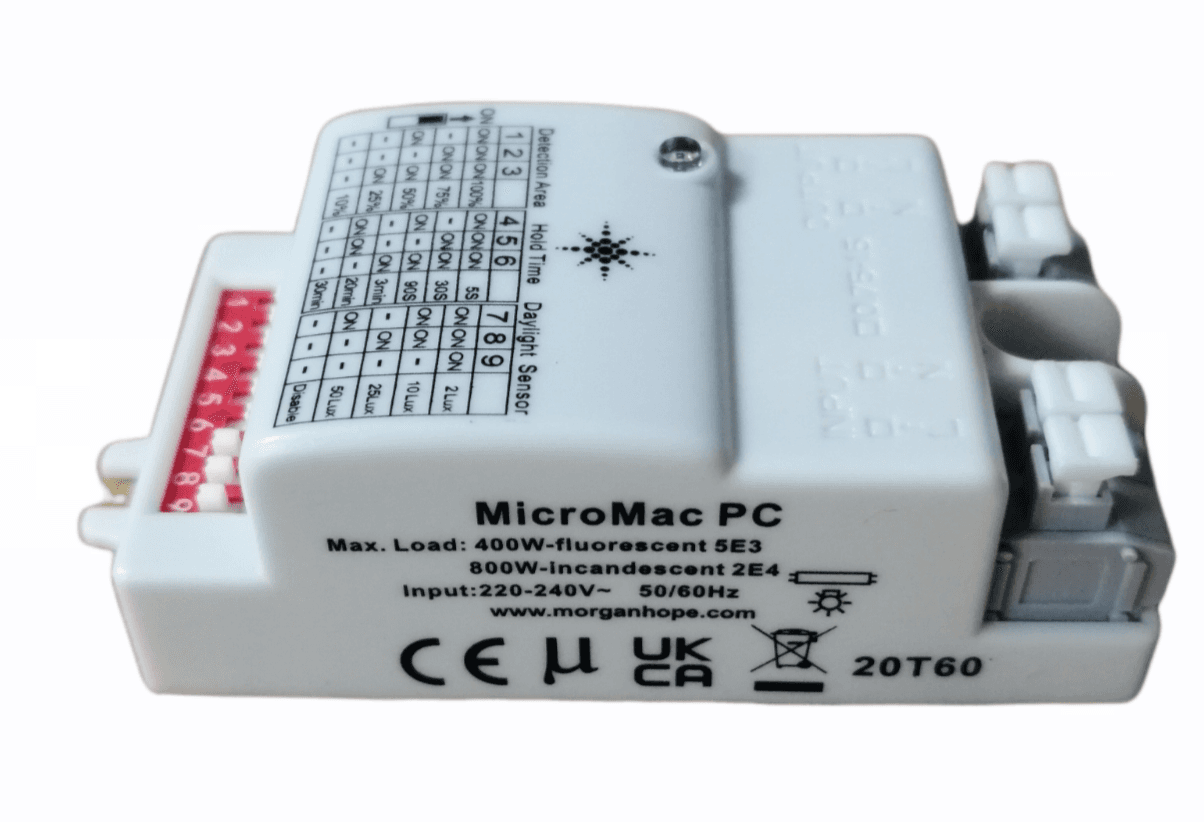

QUOTEThe Micromac-PC is an innovative motion sensor, switch on the light on detection of movement, and switch off after a hold time when there is no motion detected. The MicroMac-PC has a combined daylight sensor developed to automatically switch lights on at dusk and off at dawn, providing continuous illumination through the night. Unlike standard photocells requiring the sensor head to be fitted into the body of the luminaire, the unique design of the MicroMac-PC is programmed to distinguish between daylight and LED light, enabling it to be concealed within the luminaire but still operating on daylight switching.
Request quote
QUOTEThe MicroDim “Dimmable” Microwave Occupancy System is designed to operate with both LED and Fluorescent with 0V to 10V analogue dimming LED Drivers and dimming High Frequency Ballast, which functions on the basis of full output when movement is detected and will dim in a single stage to minimum output of the Driver/Ballast rating at approximately 10%, when the area is unoccupied. It can supplied for remote surface mount fixing or located within the housing of the luminaire and will detect through the diffuser and as such will operate on occupancy but still retain the sealed integrity of the luminaire.
Request quote

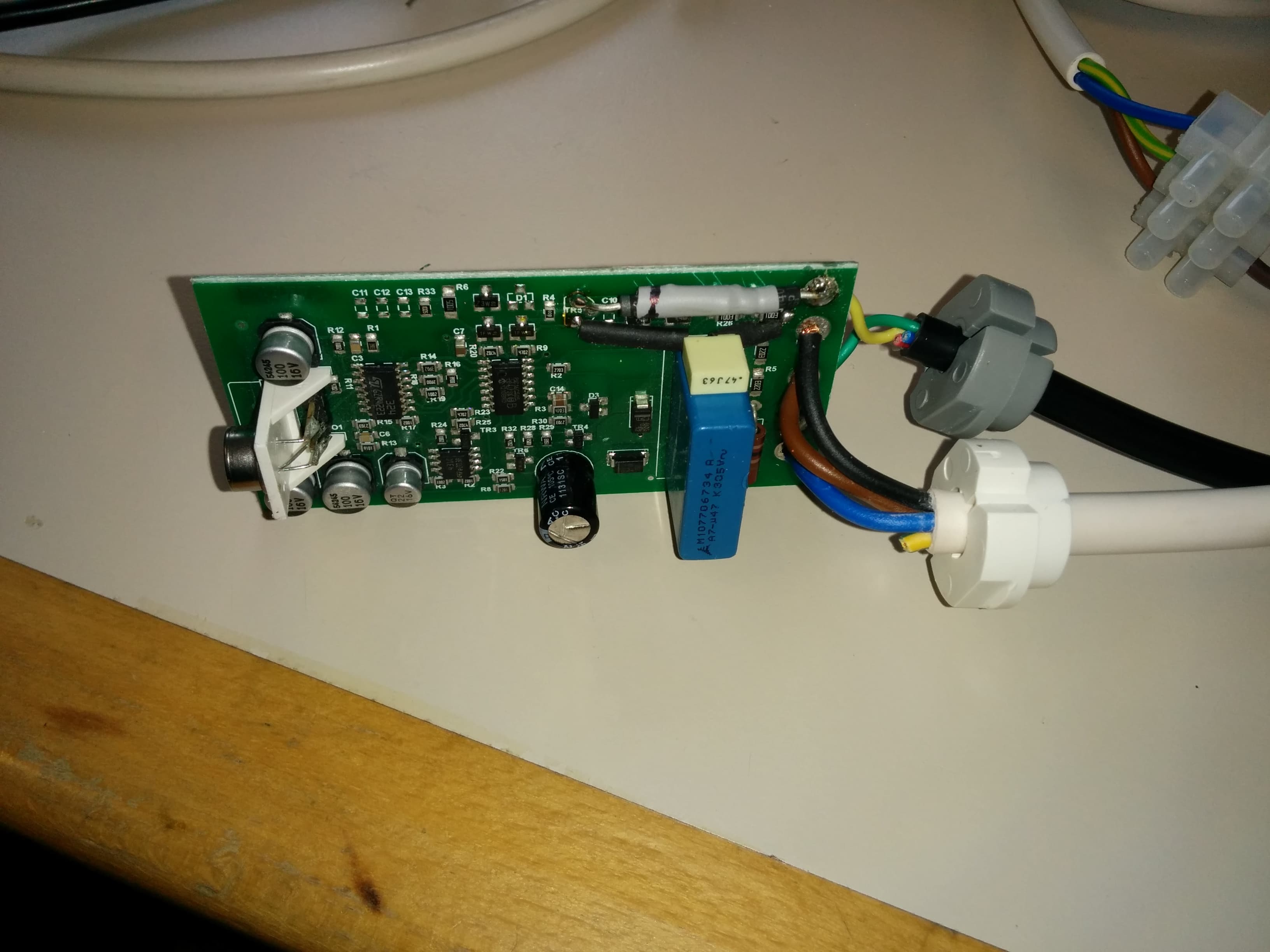

QUOTEThe MoviDim-RMS series is a two-way IR remote programmable line voltage switching occupancy sensor with 0-10V output for dimmable ballast or LED driver control. The sensor is capable of providing energy efficient lighting control in multiple modes with fully programmable multi-level high/low dim or EasyDIM control. EasyDIM is a state-of-the-art automatic dimming control technology, which is capable of maintaining the overall ambient light level within the preset range through a smooth, flawless continuous dimming control to the connected lighting.
Request quote

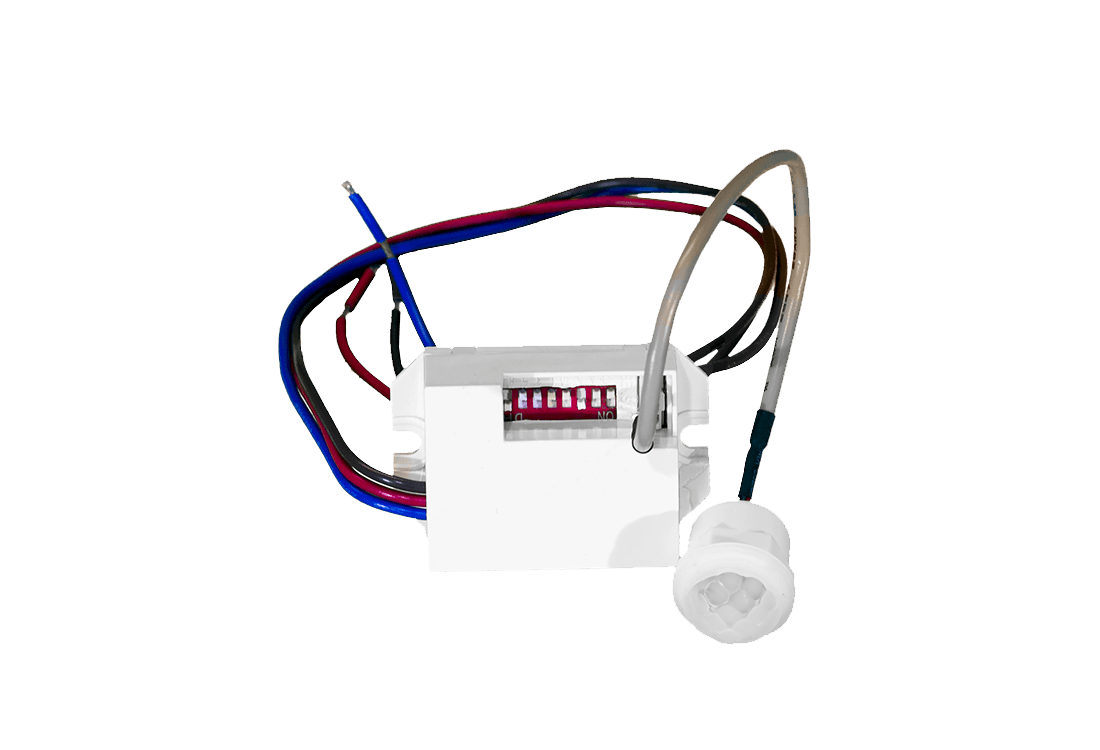

QUOTEMiniTect is a miniature PIR Detector with remote sensor head that is connected by a linking cable to the main switch box and is designed primarily for fitting integrally into LED or Fluorescent based luminaires. MiniTect is an automatic sensor switch device using infrared detection and IC & SMB technology, to detect presence of movement and light conditions within its detection range. The main switch box consists of a series of Dip Switches to adjust “Time Out” from 5 seconds to 8 minutes – daylight option to hold off operation unless below 10 lux – sensitivity switch to improve detection range – detection range of approximately 5m radii – switching load of 200W.
Request quote

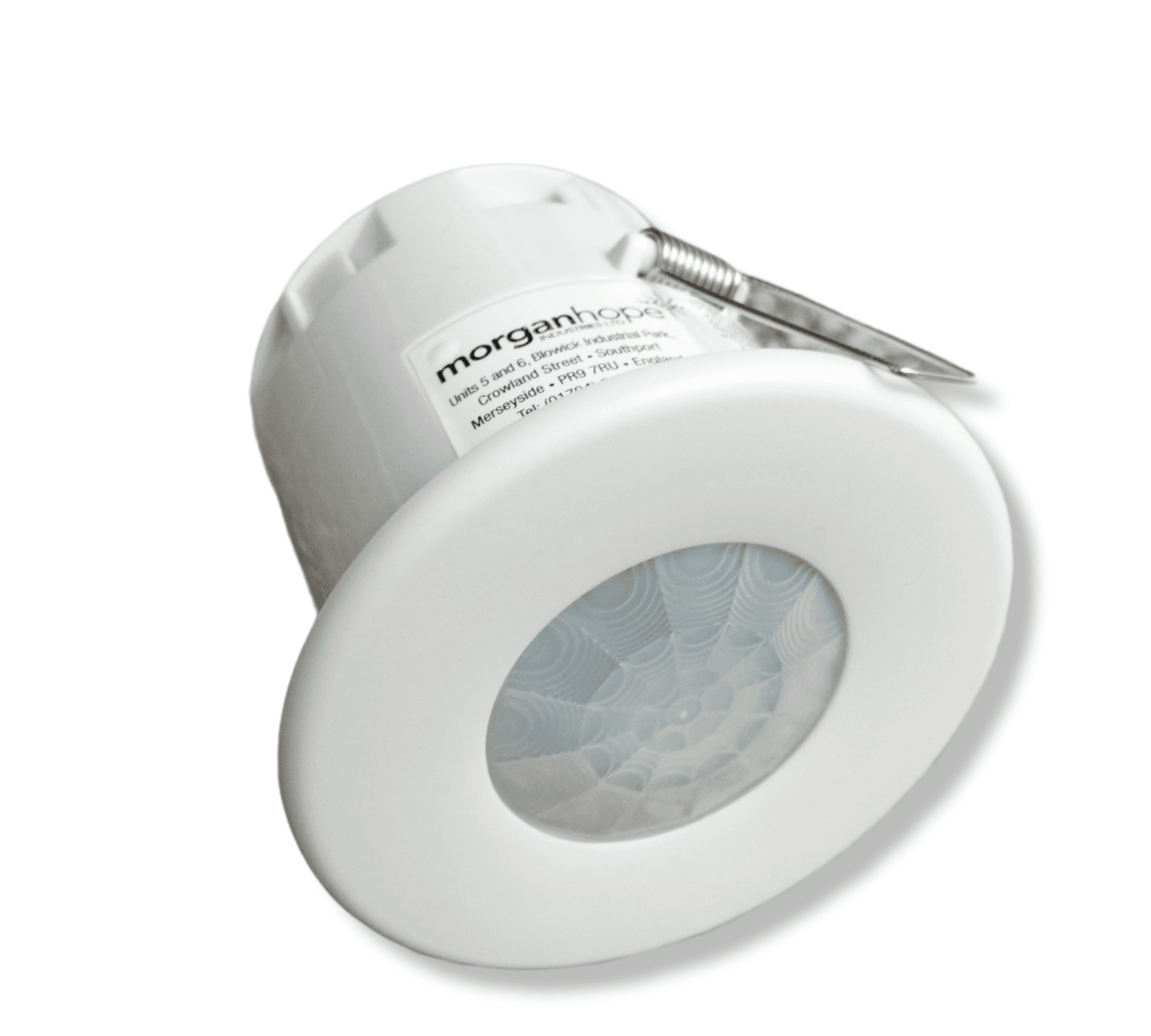

QUOTEThe MoviLux-ECO movement sensor is designed to provide automatic control of lighting, heating or ventilation loads. It detects movement using a PIR sensor and turns the load on. When an area is no longer occupied the load will switch off after an adjustable time out period. An adjustable internal light sensor provides additional energy saving in lighting applications. When an area is occupied, lighting is only switched on when the level of natural light falls below a preset level. When the sensor is first powered up the PIR sensor will always detect immediately regardless of whether the room is occupied.
Request quoteShowing 8 of 9 products
